Our core competence lies in the field of energy supply and energy distribution.

More than 30 years of experience in the electrical industry just speaks for itself.

Particularly with regard to renewable energy technologies, we have developed a extensive network of highly specialised companies. MECO ELECTRIC LLC combines their know-how and experience to form a powerful unit. In this way we are able to realize projects of any size and fulfill your individual demands at the best.

Services

Leistungen

Complete solutions for power supply

Low-voltage
Medium-voltage
Transformers
Generators
Cable

From medium-voltage-switchgears, over ready-for-use transformer stations, up to individually designed low-voltage main-distributions. Project design, planning, delivery assembly and start-up of all components in the power supply area, including gateways to process control. Remodelling, deconstruction, modernization and maintenance of electrotechnical systems. Delivery and assembly of emergency power systems and UPS-units, including network-analysis and network-calculation.

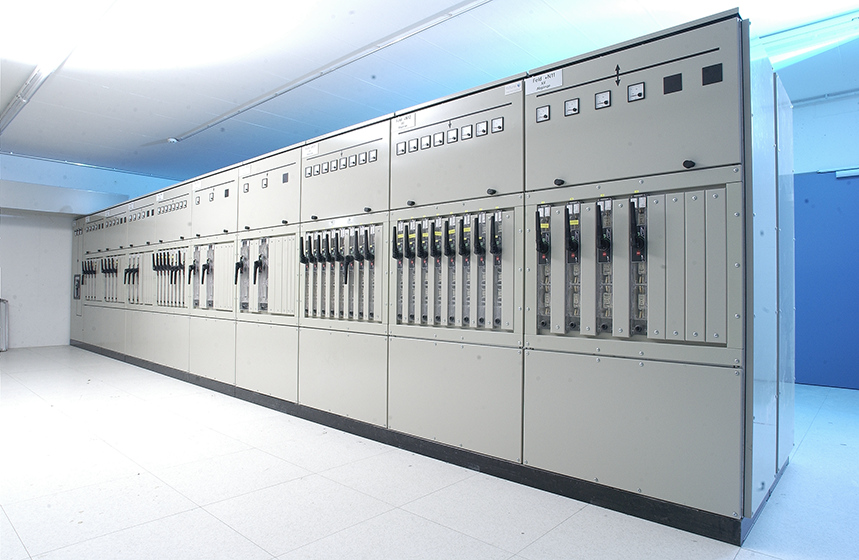

We offer a wide range of low-voltage cabinets with switchgears and services of several manufacturers, so we keep our independence and assure you the best technology for your project. Type-tested or partially type-tested low-voltage-switchgears according to VDE 0660 / part 500 (IEC 439-1). Rated currents up to 8000A. MCC plug-in technology for highest availability. Inner subdivision of the cabinets, form 2, 3a, 3b, 4 and 4b, special solutions also with busbar crossover (type-tested system).

We deliver medium-voltage components made by several manufacturers, so we can meet the optimal solution for your demands. MV-cabinets up to 24 kV. Cabinets including switch-disconnector or circuit-breaker as fixed or plug-in module. Air- and SF6-insulated cabinets as side-by-side mounting or compact unit. Gateways to process control (GLZ,ZLT).

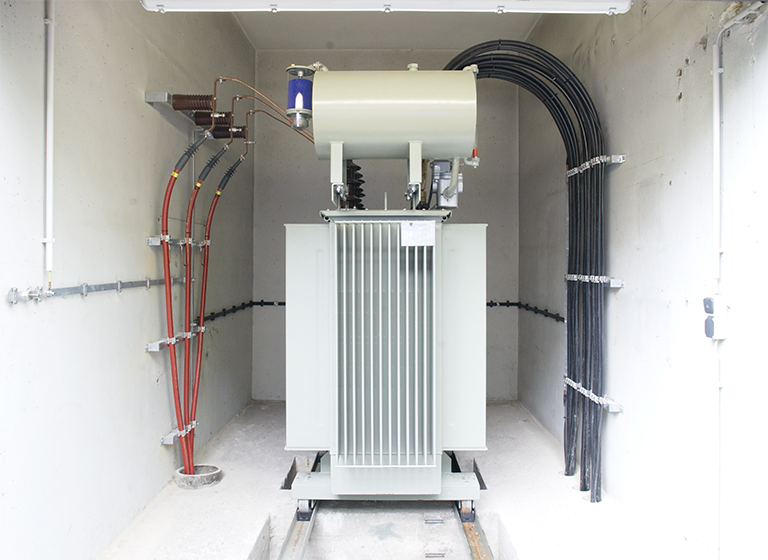

We deliver medium-voltage transformers in several designs including equipment and connection to low- and medium-voltage environment. Three-phase current transformers up to 24kV. Oil-Transformers with expansion box or in hermetic version. Casting-resin transformers, also with blower for uprating. Equipment for transformer stations, safety-equipment and transformer enclosures.

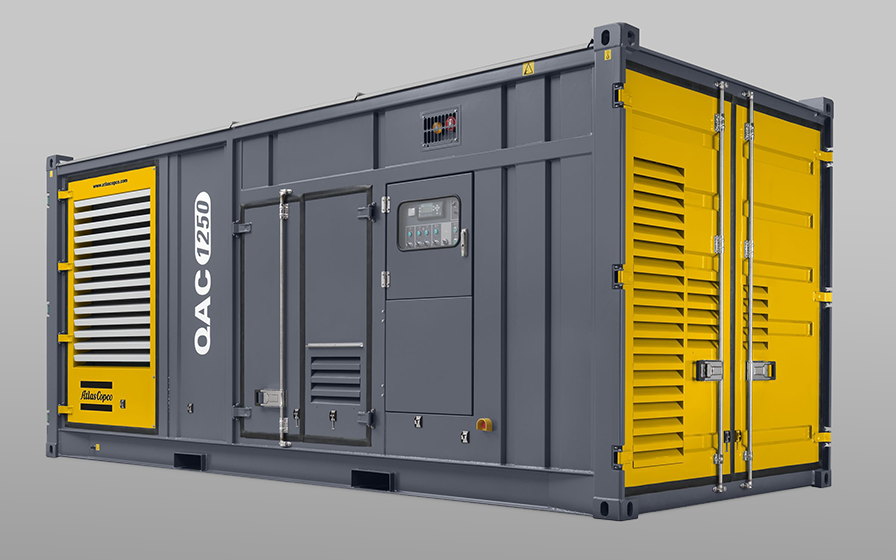

We offer emergency power systems for backup and peak load. Complete solutions according to VDE 0107, 0108, as well as DIN 6280 respectively ISO 8528. Application of motor-generator-combination by several manufacturers. Exhaust equipment with best possible exhaust values. Static and dynamic UPS-units, also in combination with emergency power systems. Assembling with incoming inductor´s Accumulator equipment for short-time bridging.

From simple cable-ties up to 20kV medium-voltage cables. We take over the calculation and dimensioning of energy distribution systems, including measurement and testing. Low- and medium-voltage cables including connectors. Cable fittings, conduit systems or busbar systems. Fire protection technology and many more.

References

Referenzen

Our worldwide projects

Angola
Abu Dhabi
Germany
Kuwait
Norway

Consulting, design, assembly and distribution of the entire energy supply in 2008

Volume

12 low-voltage main-distribution boards up to 4000A and 48 building-distribution boards. Circuit breakers up to 2500A. Entire cabling, as well as the entire inside and outside lighting. All kinds of installation materials, all kinds of required tools.
Packaging and shipment in 20- and 40-foot-containers to Port Rotterdam and shipment to port Angola.

Project NEW POWER STATION in 2011

Volume

Consulting, design, assembly and distribution of all systems for a new power station. Delivery of a 2MW diesel generator set and two 1024KW generator sets. Two low-voltage main distributions with a total amount of 19 cubicles, 14 load banks from 20KW up to 300KW, as well as all installation materials.
Besides the customer-specific planning of the required systems, already existing plants and systems have been intergrated into an overall concept. As in 2008, we arranged the entire packaging and shipment of the systems to port of destination in Angola.

During the last years we delivered a wide range of installation materials and spare parts for our customers in Abu Dhabi.

Volume

Materials for building installation as for example switches, sockets, fuses, lamps andlightings, cables and many more.
We delivered a wide range of spare parts for service and maintenance works for already existing systems. Several types of circuit breakers with currents from 16A up to 3200A. Plug-in modules for circuit breakers, measuring systems, current transformers, to mention only a few.

Projects for industrial customers

Volume
  • Planning and delivery of transformer stations
  • Low-voltage main distributions up to 5000A
  • Medium-voltage switchgears
  • Transformers up to 1500kVA
  • Entire cabling and mounting

Planning and realization of an industrial unit substation

Volume

Transformers low- and medium-voltage switchgears in one cabinet.

Projects for private customers

Volume
  • Materials for building installation as for example switches, sockets, fuses, lamps and lightings, cables and many more
  • Delivery of installation materials for photovoltaic systems
  • Planning, design and delivery of transformers for photovoltaic systems

Planning and realization of the entire energy supply for a power plant

Volume
  • 7 low-voltage main distributions from 1250A up to 5000A
  • MCC technology up to 4000A
  • Medium voltage switchgears with 3150A
  • Delivery of all installation materials
  • Integration into the existing environment

Low-voltage switchgears for an industrial customer

Volume
  • Low-voltage main distributions up to 4000A
  • Circuit breakers up to 2500A
  • Each 10 outgoing cubicles in form 4
  • Delivery of the entire installation material
  • Integration into the existing environment
